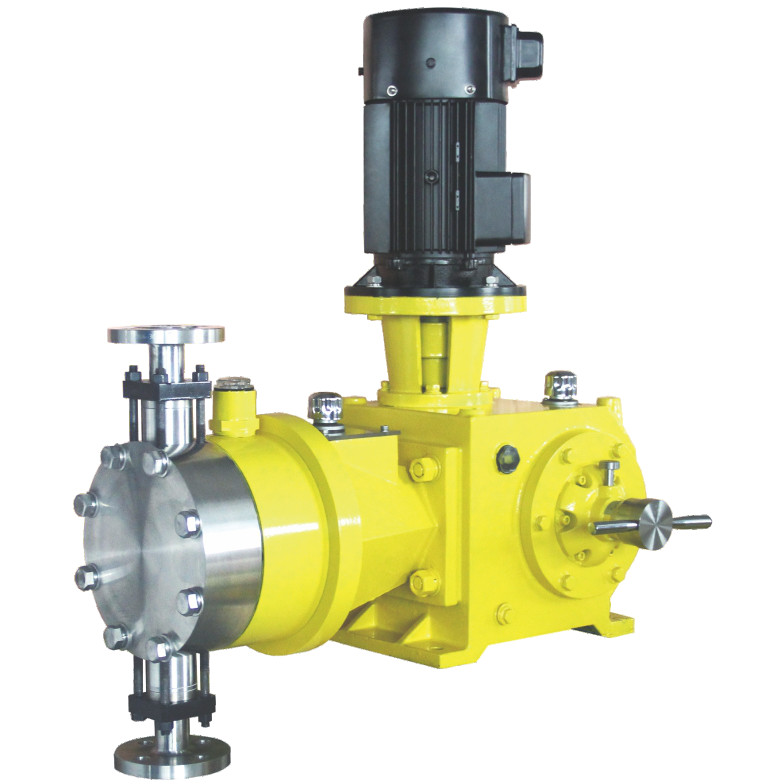

JMZシリーズ油圧ダイヤフラムの紡糸ポンプ
主要なパフォーマンス パラメータ
主要な機能

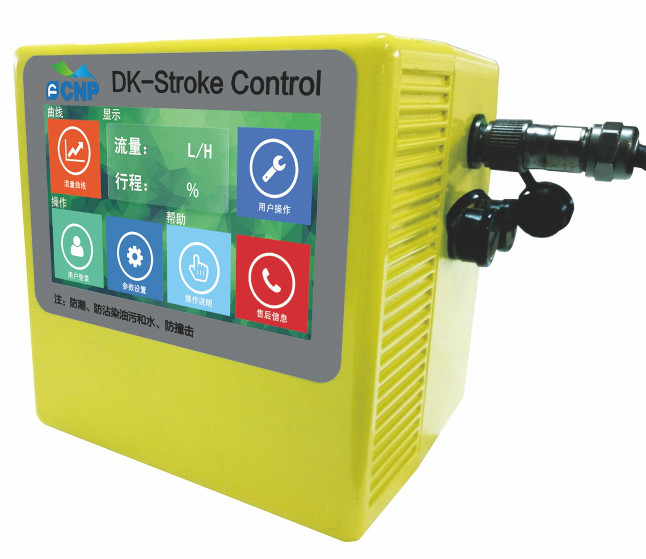

制御モード
主要出願
流れ/圧力
| コード | 最大流 | 最高圧力 | プランジャー直径 | 打撃の頻度 | ストローク | モーター力 |
|---|---|---|---|---|---|---|
| （L/h） | （Mpa） | （mm） | （m」） | （mm） | （kW） | |
| JMZ2400/0.8 | 2400 | 0.8 | 115 | 130 | 32 | 2.2 |
| JMZ2400/0.5 | 0.5 | 1.5 | ||||
| JMZ2400/0.4 | 0.4 | 1.1 | ||||
| JMZ2200/0.9 | 2200 | 0.9 | 110 | 2.2 | ||
| JMZ2200/0.6 | 0.6 | 1.5 | ||||
| JMZ2200/0.5 | 0.5 | 1.1 | ||||
| JMZ2000/1.0 | 2000年 | 1 | 105 | 2.2 | ||
| JMZ2000/0.7 | 0.7 | 1.5 | ||||
| JMZ2000/0.5 | 0.5 | 1.1 | ||||
| JMZ1 800/1.1 | 1800 | 1.1 | 100 | 2.2 | ||
| JMZ1 800/0.8 | 0.8 | 1.5 | ||||
| JMZ1 800/0.6 | 0.6 | 1.1 | ||||
| JMZ1 600/1.2 | 1600 | 1.2 | 95 | 2.2 | ||
| JMZ1600/0.8 | 0.8 | 1.5 | ||||
| JMZ1 600/0.6 | 0.6 | 1.1 | ||||
| JMZ1450/1.4 | 1450 | 1.4 | 90 | 2.2 | ||
| JMZ1450/1.0 | 1 | 1.5 | ||||
| JMZ1450/0.7 | 0.7 | 1.1 | ||||
| JMZ1 300/1.6 | 1300 | 1.6 | 85 | 2.2 | ||
| JMZ1 300/1.1 | 1.1 | 1.5 | ||||
| JMZ1 300/0.8 | 0.8 | 1.1 | ||||
| JMZ1150/1.8 | 1150 | 1.8 | 80 | 2.2 | ||
| JMZ1150/1.2 | 1.2 | 1.5 | ||||
| JMZ1150/0.9 | 0.9 | 1.1 | ||||
| JMZ1 000/2.0 | 1000 | 2 | 75 | 2.2 | ||
| JMZ1 000/1.4 | 1.4 | 1.5 | ||||
| JMZ1 000/1.0 | 1 | 1.1 | ||||
| JMZ890/2.3 | 890 | 2.3 | 70 | 2.2 | ||
| JMZ890/1.6 | 1.6 | 1.5 | ||||
| JMZ890/1.2 | 1.2 | 1.1 | ||||
| JMZ760/2.7 | 760 | 2.7 | 65 | 2.2 | ||
| JMZ760/1.8 | 1.8 | 1.5 | ||||
| JMZ760/1.4 | 1.4 | 1.1 | ||||
| JMZ650/3.1 | 650 | 3.1 | 60 | 2.2 | ||
| JMZ650/2.1 | 2.1 | 1.5 | ||||
| JMZ650/1.6 | 1.6 | 1.1 | ||||
| JMZ560/3.6 | 560 | 3.6 | 56 | 2.2 | ||
| JMZ560/2.5 | 2.5 | 1.5 | ||||
| JMZ560/1.8 | 1.8 | 1.1 | ||||
| JMZ450/4.5 | 450 | 4.5 | 50 | 2.2 | ||
| JMZ450/3.1 | 3.1 | 1.5 | ||||
| JMZ450/2.3 | 2.3 | 1.1 | ||||
| JMZ360/5.5 | 360 | 5.5 | 45 | 2.2 | ||
| JMZ360/3.8 | 3.8 | 1.5 | ||||
| JMZ360/2.8 | 2.8 | 1.1 | ||||
| JMZ290/7.0 | 290 | 7 | 40 | 2.2 | ||
| JMZ290/4.8 | 4.8 | 1.5 | ||||
| JMZ290/3.5 | 3.5 | 1.1 | ||||
| JMZ220/9.2 | 220 | 9.2 | 35 | 2.2 | ||
| JMZ220/6.3 | 6.3 | 1.5 | ||||
| JMZ220/4.6 | 4.6 | 1.1 | ||||
| JMZ1 60/12.5 | 160 | 12.5 | 30 | 2.2 | ||
| JMZ1 60/8.5 | 8.5 | 1.5 | ||||
| JMZ1 60/6.3 | 6.3 | 1.1 | ||||
| JMZ110/17.9 | 110 | 17.9 | 25 | 2.2 | ||
| JMZ110/12.2 | 12.2 | 1.5 | ||||
| JMZ110/9.0 | 9 | 1.1 | ||||
| JMZ70/28.0 | 70 | 28 | 20 | 2.2 | ||
| JMZ70/19.1 | 19.1 | 1.5 | ||||
| JMZ70/14.0 | 14 | 1.1 |
